一般互联网应用,我们不太建议在业务中使用多表联合查询,当然在业务体量比较小的情况下,多表联合查询有时候可以有效减少业务逻辑代码,所以用不用且不说,我们还是有必要了解一下多表的联合查询使用姿势

I. 项目搭建

本项目借助SpringBoot 2.2.1.RELEASE + maven 3.5.3 + IDEA进行开发

1. 项目依赖

关于如何创建一个SpringBoot的项目工程,不再本文的描述范围内,如有兴趣可以到文末的个人站点获取

在这个示例工程中,我们的选用h2dabase作为数据库(方便有兴趣的小伙伴直接获取工程源码之后,直接测试体验),因此对应的pom核心依赖如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jooq</artifactId>
</dependency>
<dependency>
<groupId>com.h2database</groupId>
<artifactId>h2</artifactId>
</dependency>
</dependencies>

2. 数据准备

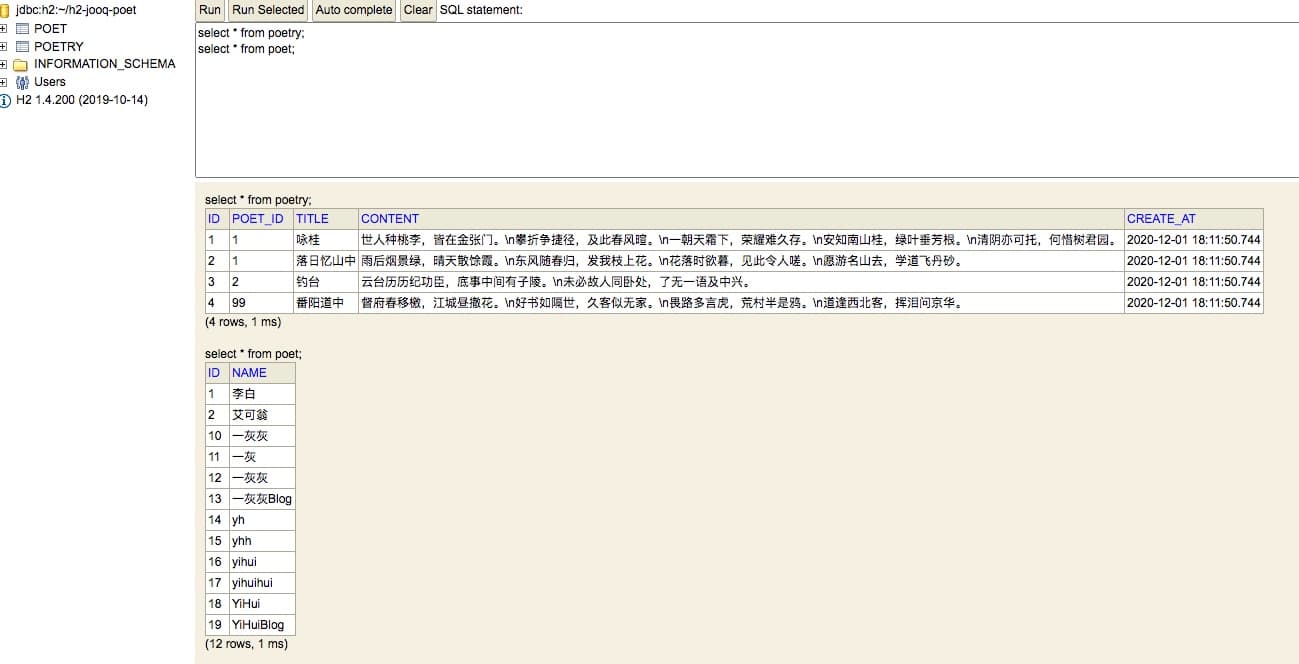

本文对应的项目工程,和前面介绍增加删除的一致,所以这里直接使用之前新增的数据

II. 使用姿势

0. 前期准备

1
2
3
4
5
6
7
8
@Repository
public class PoetryJoinerRepository {
private static final PoetTB poetTable = PoetTB.POET;
private static final PoetryTB poetryTable = PoetryTB.POETRY;

@Autowired
private DSLContext dsl;
}

1. inner join

内连接,两种常见的写法

  • select 字段 from 表1 inner join 表2 on 连接条件;
  • select 字段 from 表1, 表2 [where 关联条件];
1
2
3
4
5
6
7
8
9
10
public void innerJoin(int poetId) {
// inner join 内连接: select * from poet inner join poetry on poet.id=poetry.poet_id where poet.id=xxx
Result<Record> record = dsl.selectFrom(poetTable.innerJoin(poetryTable).on(poetTable.ID.eq(poetryTable.POET_ID))).where(poetTable.ID.eq(poetId)).fetch();
System.out.println(">>>>>>>>> inner join <<<<<<<<<<");
System.out.println(record);

// inner join 比较常用的写法 select `name`, `title`, `content` from poet, poetry where poet.id=poetry.poet_id and poet.id = xxx
Result<Record3<String, String, String>> res = dsl.select(poetTable.NAME, poetryTable.TITLE, poetryTable.CONTENT).from(poetTable, poetryTable).where(poetTable.ID.eq(poetryTable.POET_ID)).and(poetTable.ID.eq(poetId)).fetch();
System.out.println(res);
}

2. left join

左连接,以左表为主,右表显示与左表有交集的数据,若不存在,使用null填充(若左表不存在,右表有数据,则不展示)

1
2
3
4
5
6
7
public void leftJoin(int poetId) {
// left join, 以左表为主,右表显示与左表有交集的数据,若不存在,使用null填充(若左表不存在,右表有数据,则不展示)
// select * from poet left join poetry on poet.id=poetry.poet_id where poet.id=xxx
Result<Record> record = dsl.selectFrom(poetTable.leftJoin(poetryTable).on(poetTable.ID.eq(poetryTable.POET_ID))).where(poetTable.ID.eq(poetId)).fetch();
System.out.println(">>>>>>>>> left join <<<<<<<<<<");
System.out.println(record);
}

3. right join

右连接,以右表为主,左表显示与右表有交集的数据,若不存在,使用null填充(若右表不存在数据,左表有数据,则不展示)

1
2
3
4
5
6
7
public void rightJoin(int poetId) {
// right join, 以右表为主,左表显示与右表有交集的数据,若不存在,使用null填充(若右表不存在数据,左表有数据,则不展示)
// select * from poet right join poetry on poet.id=poetry.poet_id where poetry.poet_id=xxx
Result<Record> record = dsl.selectFrom(poetTable.rightJoin(poetryTable).on(poetTable.ID.eq(poetryTable.POET_ID))).where(poetryTable.POET_ID.eq(poetId)).fetch();
System.out.println(">>>>>>>>> right join <<<<<<<<<<");
System.out.println(record);
}

4. union & union all

UNION 操作符用于合并两个或多个 SELECT 语句的结果集,请注意union会对结果进行去重,而union all会显示所有的结果

1
2
3
4
5
6
7
8
9
10
11
public void union() {
// union 联合,特点是会去重重复的数据
// select id from poet union select poet_id from poetry
Result<Record1<Integer>> res = dsl.select(poetTable.ID).from(poetTable).union(dsl.select(poetryTable.POET_ID).from(poetryTable)).fetch();
System.out.println(">>>>>>>>> union <<<<<<<<<<");
System.out.println(res);

System.out.println(">>>>>>>>> union all <<<<<<<<<<");
res = dsl.select(poetTable.ID).from(poetTable).unionAll(dsl.select(poetryTable.POET_ID).from(poetryTable)).fetch();
System.out.println(res);
}

5. 测试

1
2
3
4
5
6
7
public void test() {
trueinnerJoin(1);
trueleftJoin(10);
trueleftJoin(99);
truerightJoin(10);
truerightJoin(99);
trueunion();}

输出结果如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

>>>>>>>>> inner join <<<<<<<<<<
+----+----+----+-------+-----+--------------------------------------------------+-----------------------+
| ID|NAME| ID|POET_ID|TITLE|CONTENT |CREATE_AT |
+----+----+----+-------+-----+--------------------------------------------------+-----------------------+
| 1|李白 | 1| 1|咏桂 |世人种桃李,皆在金张门。\n攀折争捷径,及此春风暄。\n一朝天霜下,荣耀难久存。\n安知南山桂...|2020-12-01 18:11:50.744|
| 1|李白 | 2| 1|落日忆山中|雨后烟景绿,晴天散馀霞。\n东风随春归,发我枝上花。\n花落时欲暮,见此令人嗟。\n愿游名山去...|2020-12-01 18:11:50.744|
+----+----+----+-------+-----+--------------------------------------------------+-----------------------+

+----+-----+--------------------------------------------------+
|NAME|TITLE|CONTENT |
+----+-----+--------------------------------------------------+
|李白 |咏桂 |世人种桃李,皆在金张门。\n攀折争捷径,及此春风暄。\n一朝天霜下,荣耀难久存。\n安知南山桂...|
|李白 |落日忆山中|雨后烟景绿,晴天散馀霞。\n东风随春归,发我枝上花。\n花落时欲暮,见此令人嗟。\n愿游名山去...|
+----+-----+--------------------------------------------------+

>>>>>>>>> left join <<<<<<<<<<
+----+----+------+-------+------+-------+---------+
| ID|NAME| ID|POET_ID|TITLE |CONTENT|CREATE_AT|
+----+----+------+-------+------+-------+---------+
| 10|一灰灰 |{null}| {null}|{null}|{null} |{null} |
+----+----+------+-------+------+-------+---------+

>>>>>>>>> left join <<<<<<<<<<
+----+----+----+-------+-----+-------+---------+
| ID|NAME| ID|POET_ID|TITLE|CONTENT|CREATE_AT|
+----+----+----+-------+-----+-------+---------+

>>>>>>>>> right join <<<<<<<<<<
+----+----+----+-------+-----+-------+---------+
| ID|NAME| ID|POET_ID|TITLE|CONTENT|CREATE_AT|
+----+----+----+-------+-----+-------+---------+

>>>>>>>>> right join <<<<<<<<<<
+------+------+----+-------+-----+--------------------------------------------------+-----------------------+
| ID|NAME | ID|POET_ID|TITLE|CONTENT |CREATE_AT |
+------+------+----+-------+-----+--------------------------------------------------+-----------------------+
|{null}|{null}| 4| 99|番阳道中 |督府春移檄,江城昼撤花。\n好书如隔世,久客似无家。\n畏路多言虎,荒村半是鸦。\n道逢西北客...|2020-12-01 18:11:50.744|
+------+------+----+-------+-----+--------------------------------------------------+-----------------------+

>>>>>>>>> union <<<<<<<<<<
+----+
| ID|
+----+
| 1|
| 2|
| 10|
| 11|
| 12|
| 13|
| 14|
| 15|
| 16|
| 17|
| 18|
| 19|
| 99|
+----+

>>>>>>>>> union all <<<<<<<<<<
+----+
| ID|
+----+
| 1|
| 2|
| 10|
| 11|
| 12|
| 13|
| 14|
| 15|
| 16|
| 17|
| 18|
| 19|
| 1|
| 1|
| 2|
| 99|
+----+

仔细观察一下上面输出中,left join 与 right join两次的查询情况,对于left join而言,左表的数据要求有,右表没有用null填充;而right join正好相反

此外就是unionunion all的区别,前面会去重,后面则是捞出所有的记录

II. 其他

0. 项目

系列博文

项目源码

1. 一灰灰Blog

尽信书则不如,以上内容,纯属一家之言,因个人能力有限,难免有疏漏和错误之处,如发现bug或者有更好的建议,欢迎批评指正,不吝感激

下面一灰灰的个人博客,记录所有学习和工作中的博文,欢迎大家前去逛逛
